VC-LE-3960E/30-4CH
SKU: VC-LE-3960E/30-4CH
Stock: 100
Stock: 100
Price:
$155.00
$79.00
|

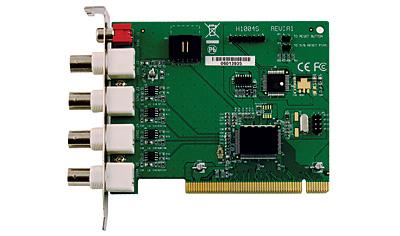

Video Capture Device
|
|
|
System
|
32 bits PCI bus
|
|
Input Level
|
1.0Vpp, 75Ω, composite
|
|
Inputs
|
4 channels with BNC connectors
|
|
Video
|
|
|
Video Standard
|
NTSC/PAL
|
|
Resolution
|
NTSC/PAL: 640x480(de-interlace)/640x240/320x240
|
|
Display
|
Up to 30/25fps (NTSC/PAL) per card
|
|
Full screen, 1 / 4 split-screen layout, quick display
|
|
|
VGA mode at 1024x768 pixels, 16bit color depth
|
|
|
Image Adjustment
|
Brightness, contrast, hue and saturation
|
|
Recording System
|
|
|
Video Compression
|
Motion-JPEG, HM MPEG-4 like
|
|
Frame Rate
|
Up to 30/25fps (NTSC/PAL) per card
|
|
Recording Modes
|
Non-stop recording, Event recording, Schedule recording, Time-lapse recording and Non-stop smart recording
|
|
Quality
|
Best, Good, Fast
|
|
Playback
|
Forward / Reverse / Pause / Play / Stop, loop playback
|
|
Playback speed from 1/8 ~ 16x
|
|
|
Zoom in and zoom out
|
|
|
Playback up to 4 cameras simultaneously
|
|
|
Search
|
Event or date/time,
|
|
Audio Compression
|
Microsoft ADPCM compression scheme
|
|
Storage and Backup
|
|
|
Capacity
|
Multiple storage location management
|
|
Access records at a centralized site over network
|
|
|
Backup Method
|
Manual backup and daily auto-backup
|
|
Backs up records to CD-RW and DVD-RW
|
|
|
Transportation
|
Video export to AVI file
|
|
Take a snapshot (BMP/JPG) and save to a portable memory device
|
|
|
Event Management
|
|
|
Event Types
|
Motion detection, alarm sensor, manual triggered
|
|
Event Notification
|
Email / Fax / Phone / Alarm / Flashing message
|
|
E-Map
|
Graphical electronic map enables ease of management and monitoring for placement of alarm device and camera
|
|
Motion Detection
|
Sensitivity level and noise tolerance control
|
|
Moving object tracking
|
|
|
Definable detection area
|
|
|
Alarm I/O
|
Control of conventional security sensor and alarm device(I/O box not included)
|
|
Event Report
|
Daily, weekly, or monthly
|
|
Remote Monitoring
|
|
|
Access Privileges
|
Administrator, Manager, Operator, Remote User
|
|
Viewing System
|
HTTP Web browser
|
|
Remote Control
|
View camera, record video, control PTZ camera
|
|
Voice Communication
|
One quick button for half duplex communication
|
|
Connections
|
TCP/IP network, modem dial-up
|
|
PTZ Camera Control
|
|
|
Movement Control
|
Pan, Tilt, Zoom, speed control, iris and focus adjustment, auto loop, auto-pan
|
|
Automatic Cruise
|
8 preset positions
|
|
1 preset camera tour
|
|
|
Note: The frame rates are measured at 320x240 resolutions. The performances shown above are tested on its best system configuration.
|
|
System Requirements for Maximum Performance
|
|
Model
|
VC-LE-3960E/30
|
|
Video CH
|
4
|
|
FPS
|
30/25 (NTSC/PAL)
|
|
Avg. Data Size
|
1 ~ 2GB/day (25% motion)
|
|
Resolution
|
320x240 (for real-time frame rate)
|
|
Compression
|
HM MPEG-4 based proprietary at Good quality setting
|
|
CPU
|
Pentium IV CPU or above
|
|
System Memory
|
256MB system RAM or above
|
|
Display Adapter
|
AGP adapter with 16MB memory on board, DirectDraw compatible, 1024x768 resolution, hi-color display mode or above
|
|
Display Monitor
|
VGA mode at resolution of 1024x768
|
|
Hard Disk
|
At least 40GB space available, 7200RPM
|
|
LAN Card
|
Ethernet 10/100 BaseT
|
|
Modem
|
56k voice modem for dial-out event notification, 56k v.90 modem for remote viewing by direct connection., 56k, xDSL, cable modem for remote viewing
|
|
Sound Card
|
8-bit full duplex, Windows compatible
|
|
OS
|
Windows 2000/XP with DirectX 8.1 and Internet Explorer 5.5 or above
|
