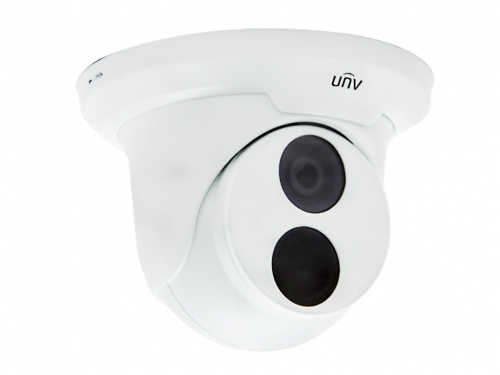

4MP H.265 HD IP WDR IR DOME CAMERA | UN-IPC3614SR3DPF28M

SKU: UN-IPC3614SR3DPF28M
Stock: 100

Price: $135.00

$125.00

Features

DOWNLOADS
	UN-IPC3614SR3DPFM Spec. Sheet
	Uniview IPC3600 Quick Start Guide
	Uniview IP Cameras User Manual
	Uniview IP Cameras Installation Guide

SYSTEM
Compression	H.265 / H.264 / MJPEG
CAMERA
Image Sensor	1/3", 4megapixel, progressive scan, CMOS
Image Resolution	2592 × 1520
Electronic Shutter	Auto/Manual, 1/6~1/100000 s
Mini. Illumination	Colour: 0.02 Lux (F1.8, AGC ON); 0 Lux with IR on
Lens Focal Length	2.8mm@F1.8 Fixed Lens
Adjustment Range	Pan: 0°~360° , Tilt: 0° ~ 77°, Rotation: 0° ~ 360°
CAMERA FEATURES
IR LEDs	Smart IR
IR LEDs Distance	Up to 98ft (30m)
Day / Night	IR-cut filter with auto switch (ICR)
Evaluative Metering	Supported
Gain Control	Auto / Manual
Noise Reduction	2D/3DNR
Privacy Masking	Up to 8 areas
Motion Detection	Up to 2 areas
White Balance	Auto / Manual
WDR	120 dB
VIDEO
Frame Rate	4MP (2592×1520): Max.20 fps; 4MP (2560×1440): Max.25 fps; 3MP (2048×1520): Max.30 fps; 1080P (1920×1080): Max. 30 fps
ROI	Supported ROI Supported
DISPLAY
OSD	Up to 8 OSDs
LENS
Angle of View	101.8°
SPECIAL FEATURES
Behavior Detection	Intrusion, crossing line, motion detection
Intelligent Identification	Face detection, Defocus, Scene Change
Statistical Analysis	People counting
9:16 Corridor Mode	Supported
NETWORK
Network Function	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
GENERAL
Power Supply	DC12V/POE
Power Consumption	Max 5.5 W
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Protection	IP67
Dimensions	Φ 126 x 94 mm (Ø 5.0” x 3.7”)
Weight	0.45 kg (0.99 lb)
