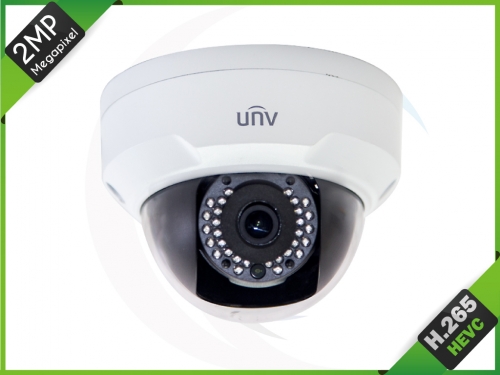

2MP H.265 IP Starlight Vandal Camera | UN-IPC322ER3DUVPF40B

SKU: UN-IPC322ER3DUVPF40B
Stock: 100

Price: $159.00

$149.00

(0.0 on 0) | Write a review

Overview Reviews Tell a Friend

DESCRIPTION

Features

H.265 Compression
1/2.9", 2 megapixel, progressive scan CMOS
Effective Pixels: 1920 × 1080
Smart IR, IR anti-reflection window
IR Distance is up to 98ft (30M)
Colour: 0.002 Lux (F1.6, AGC ON); 0 Lux with IR
1080P (1920*1080): Max. 30 fps;
720P (1280*720): Max. 30 fps;
D1 (720×576): Max. 30 fps
WDR,2D/3D DNR, microSD,
Audio I/O, Alarm I/O, 2 Way Audio
4mm Fixed Lens
DC 12V/PoE
IP67, IK10

DOWNLOADS
	UN-IPC322ER3DUVPF40B Spec. Sheet
	Uniview IPC320 Quick Start Guide
	Uniview IP Cameras User Manual
	Uniview IP Cameras Installation Guide

SPECIFICATION

CAMERA
Image Sensor	1/2.9", 2 megapixel, progressive scan CMOS
Image Resolution	1920 × 1080
Electronic Shutter	Auto/Manual, 1/6~1/100000 s
Mini. Illumination	Colour: 0.002 Lux (F1.6, AGC ON); 0 Lux with IR
S/N Ratio	>52dB
Lens Focal Length	4.0 mm@F1.6 Fixed Lens
CAMERA FEATURES
IR LEDs	30 Smart IR
IR LEDs Distance	Up to 98ft (30m)
Day / Night	IR-cut filter with auto switch (ICR)
Evaluative Metering	Supported
Noise Reduction	2D / 3D DNR
Privacy Masking	Up to 8 areas
WDR	WDR(up to 120dB)
VIDEO
Frame Rate	1080P (19201080): Max. 30 fps; 720P (1280720): Max. 30 fps; D1 (720×576): Max. 30 fps
ROI	Supported ROI Supported
VIDEO & AUDIO
Audio In	impedance 35 kΩ; amplitude 2 V [p-p]
Audio Out	Output: impedance 600 Ω; amplitude 2 V [p-p]
DISPLAY
OSD	Up to 8 OSDs
LENS
Angle of View	76.6°
AUDIO
Compression	H.265 / H.264 / MJPEG
ALARM
Alarm In	1CH
Alarm Out	1CH
SPECIAL FEATURES
Behavior Detection	Intrusion, crossing line, motion detection
Intelligent Identification	Face detection, Defocus, Scene Change
Statistical Analysis	People counting
Exception Detection	Audio detection
9:16 Corridor Mode	Supported
NETWORK
Network Function	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
STORAGE
Edge Storage	Micro SD, up to 128 GB
GENERAL
Power Supply	DC12V/POE
Power Consumption	Max 5.5 W
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Protection	IP67, IK10
Dimensions	Φ108.5 x 81 mm (Ø4.28” x 3.2”)
Weight	0.45 kg (0.99 lb)
