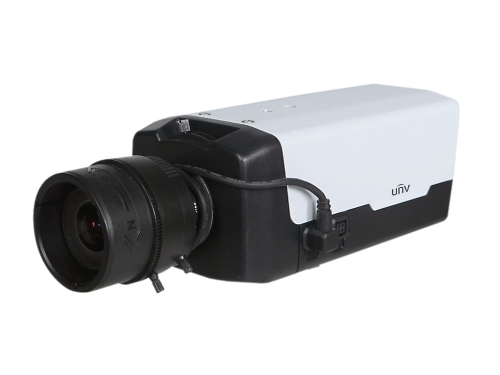

2MP H.265 HD IP STARLIGHT BOX CAMERA | UN-IPC562EDUG

SKU: UN-IPC562EDUG
Stock: 100

Price: $430.00

$399.00

(0.0 on 0) | Write a review

Overview Reviews Tell a Friend

DESCRIPTION

Features

H.265 Compression
1/1.9" progressive scan CMOS
Effective Pixels: 1920 (H) × 1080 (V)
Colour: 0.02 Lux (F1.6, AGC ON);
1080P (1920×1080): Max. 60 fps
WDR, HLC, ABF, 2D/3D DNR
Audio I/O, Alarm I/O
SD card, Max 128GB
DC12V±25% / AC24V±25% / PoE

DOWNLOADS
	UN-IPC562EDUG Spec. Sheet
	Uniview IP Cameras User Manual
	Uniview IP Cameras Installation Guide

SPECIFICATION

CAMERA
Image Sensor	1/1.9" CMOS, progressive scan
Image Resolution	1920 × 1080
Electronic Shutter	Auto/Manual, 1/6~1/100000 s
Mini. Illumination	Colour: 0.002 Lux (F1.2, AGC ON); B/W:0.0002 Lux(F1.2, AGC ON)
S/N Ratio	>52dB
CAMERA FEATURES
Day / Night	IR-cut filter with auto switch (ICR)
Evaluative Metering	Supported
Noise Reduction	3D DNR
Privacy Masking	Supported
Defog	Optical Defog & Digital Defog
HLC	Supported
WDR	True WDR 120dB
VIDEO
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
Frame Rate	1080P (1920×1080): Max. 60 fps; 1080P (1920×1080): Max. 15 fps; / 1080P (1920×1080): Max. 60 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max.15 fps; / 1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max.30 fps
ROI	Supported
VIDEO & AUDIO
Audio In	1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
Audio Out	1 Output: impedance 600 Ω; amplitude 2 V [p-p]
2-Way Audio	Supported
DISPLAY
OSD	Up to 8 OSDs
AUDIO
Audio	3.5 mm audio interface
Compression	H.265 / H.264 / MJPEG
ALARM
Alarm In	2CH
Alarm Out	1CH
SPECIAL FEATURES
Behavior Detection	Intrusion, crossing line, motion detection
Intelligent Identification	Face detection,
Statistical Analysis	People counting
Exception Detection	Audio detection
ABF	Supported
NETWORK
Network Function	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
STORAGE
Edge Storage	microSD, Max 128GB
AUXILIARY INTERFACE
RS485	1 RS485 (support Pelco-D/P)
GENERAL
Power Supply	DC12V±25%, AC24V±25%, PoE (IEEE802.3 at)
Power Consumption	4.8W (6.8W with ICR on)
Working Environment	–20°C ~ 60°C (-4°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Dimensions	151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”) (excluding the lens)
Weight	0.48 kg (1.1 lb)
