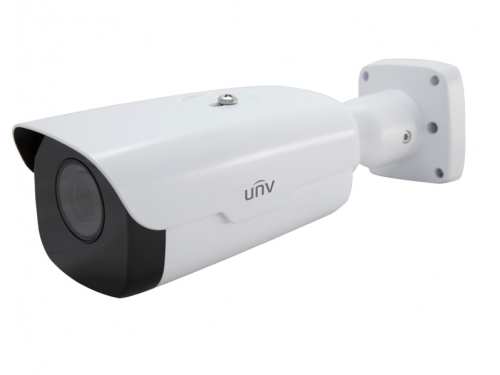

8MP H.265 HD IP IR BULLET CAMERA | UN-IPC268ER9DZ

SKU: UN-IPC268ER9DZ
Stock: Out of Stock

Price: $550.00

$499.00

(0.0 on 0) | Write a review

Overview Reviews Tell a Friend

DESCRIPTION

Features

H.265 Compression
1/2.5", 8 megapixel, progressive scan CMOS
Effective Pixels: 3840 (H) × 2160 (V)
Smart IR, IR anti-reflection window
IR Distance is up to 328ft (100M)
Colour: 0.02 Lux (F1.6, AGC ON);
0 Lux with IR
4K (3840×2160): Max.30 fps;
1080P (1920×1080): Max. 30 fps
WDR, 2D/3D DNR
2.8~12mm@F1.6, P-Iris, Motorized Lens
microSD, Max 128GB
DC12V±25% / AC24V±25% / PoE
IP67

DOWNLOADS
	UN-IPC268ER9DZ Spec. Sheet
	Uniview IP Cameras User Manual
	Uniview IP Cameras Installation Guide

SPECIFICATION

CAMERA
Image Sensor	1/2.5", 8 megapixel, progressive scan CMOS
Image Resolution	3840 × 2160
Electronic Shutter	Auto/Manual, 1/6~1/100000 s
Mini. Illumination	Colour: 0.02 Lux (F1.8, AGC ON); 0 Lux with IR on
S/N Ratio	>55dB
Lens Focal Length	2.8~12mm@F1.6, P-Iris, Motorized Lens
CAMERA FEATURES
IR LEDs	Smart IR
IR LEDs Distance	Up to 328ft (100m)
Day / Night	IR-cut filter with auto switch (ICR)
Evaluative Metering	Supported
Noise Reduction	2D/3DNR
Privacy Masking	Supported
WDR	True WDR 120dB
VIDEO
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
Frame Rate	4K (3840×2160): Max.30 fps; 1080P (1920×1080): Max. 30 fps
ROI	Supported
VIDEO & AUDIO
Audio In	1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
Audio Out	1 Output: impedance 600 Ω; amplitude 2 V [p-p]
2-Way Audio	Supported
DISPLAY
OSD	Up to 8 OSDs
AUDIO
Audio	G.711
Compression	H.265 / H.264 / MJPEG
ALARM
Alarm In	2CH
Alarm Out	1CH
SPECIAL FEATURES
Behavior Detection	Intrusion, crossing line, motion detection
Intelligent Identification	Face detection, Defocus, Scene Change
Statistical Analysis	People counting
Exception Detection	Audio detection
NETWORK
Network Function	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
STORAGE
Edge Storage	microSD, Max 128GB
GENERAL
Power Supply	DC12V±25%, AC24V±25%, PoE (IEEE802.3 at)
Power Consumption	Max. 15 W
Working Environment	-40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Protection	IP67
Dimensions	305.5 ×104.1 ×97.3mm (12.0” × 4.1” × 3.8”)
Weight	1.65 kg (3.6 lb)
