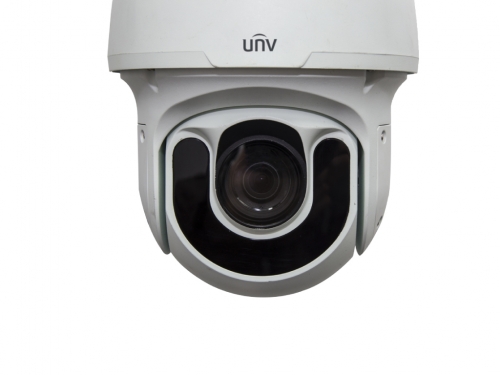

3MP H.265 HD IP WDR PTZ CAMERA 33X ZOOM | UN-IPC6253SRX33

SKU: UN-IPC6253SRX33
Stock: 100

Price: $1,200.00

$1,099.00

(0.0 on 0) | Write a review

Overview Reviews Tell a Friend

DESCRIPTION

1/2.8" progressive scan CMOS
Up to 2048 × 1536 resolution, 30fps
33x optical zoom (4.5~148.5mm)
Smart IR, up to 200m IR distance
Alarm I/O, Audio I/O, ONVIF
microSD (up to 128GB)
AC24V, DC24V, 11~47W
–40°C ~ +70°C

	UN-IPC6253SRX33 Spec. Sheet
	Uniview IPC6200 Quick Start Guide
	Uniview IP Cameras User Manual
	Uniview IP Cameras Installation Guide

SPECIFICATION

CAMERA
Image Sensor	1/2.8" 3MP progressive scan CMOS
Effective Pixels	2048 × 1536
Electronic Shutter	Auto/Manual; shutter time: 1/6 s ~ 1/100000 s
Mini. Illumination	Colour: 0.02Lux (F1.6,AGC ON) 0 Lux with IR
S/N Ratio	>55dB
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
Iris	Auto/Manual; F1.6 ~ F5.3
CAMERA FEATURES
IR LEDs	Super IR LEDs
IR LEDs Distance	Up to 200m
Day / Night	IR-cut filter with auto switch (ICR)
Evaluative Metering	Supported
Privacy Masking	Up to 8 areas
Digital Zoom	Supported
HLC	Supported
WDR	WDR, 120dB
OSD Menu	Up to 8 OSDs
VIDEO
Video Compression	H.265, H.264, MJPEG
VIDEO & AUDIO
Audio In	Audio cable, 1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
Audio Out	1 Output: impedance 600 Ω; amplitude 2 V [p-p]
2-Way Audio	Supported
LENS
Angle of View	62.93° (wide) ~3.51° (tele)
RECORDING
Frame Rate (fps)	3MP (2048×1536):Max.30 fps; 1080P (1920×1080):Max.60 fps
SPECIAL FEATURES
Behavior Detection	Intrusion, crossing line, motion detection, Auto tracking
Intelligent Identification	Face detection
Statistical Analysis	People counting
Exception Detection	Audio detection
NETWORK
Ethernet	1 RJ45 10M/100M Base-TX Ethernet
Protocol	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Compatibility	ONVIF, API
PTZ
Zoom	4.5 ~ 148.5 mm (33x optical zoom)
Pan / Tilt Range	Pan: 360° (endless) / Tilt: –15° ~ +90° (auto reverse)
Preset Speed	Pan: 300°/s , Speed: 0.1°/s ~ 240°/s / Tilt: 240°/s, Speed: 0.1° ~ 160°/s
Preset	256
Patrol	Preset patrol, route patrol, recorded patrol
Position Display	Home Position
Home Position	Supports
STORAGE
Storage	Micro SD, up to 128 GB
AUXILIARY INTERFACE
Alarm	2 / 1CH
Memory Slot	microSD ( up to 128GB )
RS485	1 RS485
GENERAL
Power Supply	24 V AC (Default), 24 V DC
Power Consumption	11~47W
Working Environment	–40°C ~ +70°C (-40°F ~ 158°F), Humidity ≤ 95% RH(non-condensing)
Protection	IP66
Dimensions	Ø227x359.4 mm (Ø8.9” x 14.2”)
Weight	5.5kg (12.1lb)
