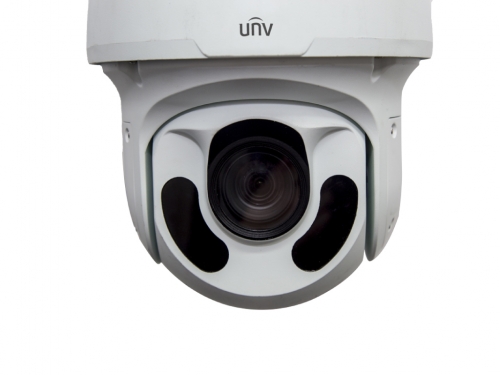

2MP H.265 HD IP PTZ CAMERA 30X ZOOM | UN-IPC6222ERX30PB

SKU: UN-IPC6222ERX30PB
Stock: 100

Price: $799.00

$750.00

(0.0 on 0) | Write a review

Overview Reviews Tell a Friend

DESCRIPTION

1/3" progressive scan CMOS
Up to 1920 × 1080 resolution, 30fps
30x optical zoom (4.5~135mm)
Smart IR, up to 150m IR distance
Alarm I/O, Audio I/O, ONVIF
microSD (up to 128GB)
All-weather design
AC24V, DC24V, 9~42W
IP66, –40°C ~ +65°C
(-P) PoE

	UN-IPC6222ERX30PB Spec. Sheet
	Uniview IPC6222 Quick Start Guide
	Uniview IP Cameras User Manual
	Uniview IP Cameras Installation Guide

SPECIFICATION

CAMERA
Image Sensor	1/3" 2MP HD CMOS Sensor
Effective Pixels	1920 × 1080
Electronic Shutter	Auto/Manual; shutter time: 1/6 s ~ 1/100000 s
Mini. Illumination	Color: 0.03 lux (F1.5, AGC ON); 0 lux with IR
S/N Ratio	>52dB
Iris	Auto/Manual; F1.5 ~ F3.0
CAMERA FEATURES
IR LEDs	Super IR LEDs
IR LEDs Distance	Up to 150m
Day / Night	IR-cut filter with auto switch (ICR)
Evaluative Metering	Supported
Privacy Masking	Up to 8 areas
Digital Zoom	Supported
HLC	Supported
WDR	Digital WDR
OSD Menu	Up to 8 OSDs
VIDEO
Video Compression	H.265, H.264, MJPEG
VIDEO & AUDIO
Audio In	impedance 35 kΩ; amplitude 2 V [p-p]
Audio Out	impedance 600 Ω; amplitude 2 V [p-p]
2-Way Audio	Supported
LENS
Angle of View	62.9° (wide) ~ 2.3° (tele)
Focal Lens	4.5 ~ 135 mm (30x optical zoom)
RECORDING
Recording Resolution	2MP ( 1920 × 1080 ), 1.3MP ( 1280 × 960 ), VGA ( 640 × 480 )
Frame Rate (fps)	1080P (1920×1080):Max.30 fps; 720P (1280×720):Max.30 fps; D1 (720×576):Max.30 fps
SPECIAL FEATURES
Behavior Detection	Intrusion, crossing line, motion detection
Intelligent Identification	Face detection
Statistical Analysis	People counting
Exception Detection	Audio detection
NETWORK
Ethernet	RJ-45 (10/100Base-T)
Protocol	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP 802.1x
Compatibility	ONVIF, API
PTZ
Pan / Tilt Range	Pan: 360° / Tilt: –15° ~ +90° (auto reverse)
Preset Speed	Pan: 300°/s , Speed: 0.1°/s ~ 240°/s / Tilt: 240°/s, Speed: 0.1° ~ 160°/s
Preset	256
Patrol	Up to 16 patrols, up to 32 presets per patrol Note: The total number of patrols and patterns is 16.
Pattern	Up to 16 patterns, with the total recording time not less 15 minutes per pattern
STORAGE
Storage	Micro SD, up to 128 GB
AUXILIARY INTERFACE
Alarm	1/ 1CH
Memory Slot	microSD
GENERAL
Power Supply	24 V AC, 24 V DC, PoE (PSE Required)
Working Environment	–40°C ~ +65°C (-40°F ~ 149°F), Humidity ≤ 95% RH(non-condensing)
Protection	IP66
Dimensions	227 x 359.4 mm (Ø8.9” x 14.2”)
