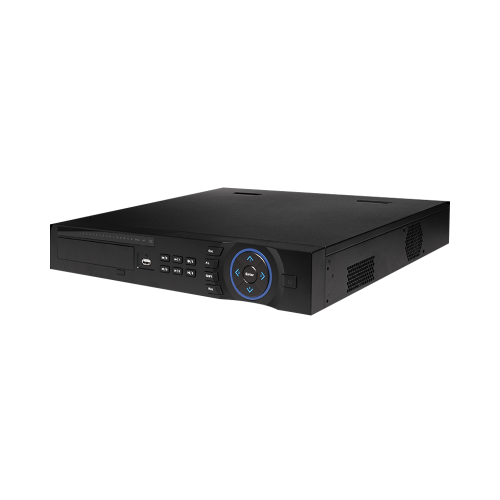

16 Channel 1.5U 16PoE 4K&H.265 Pro Network Video Recorder | NVR504L-16/16P-4KS2E

SKU: NVR504L-16/16P-4KS2E
Stock: 20

Price: $700.00

$688.00

(0.0 on 0) | Write a review

Overview Reviews Tell a Friend

Features

H.265/H.264/MJPEG/MPEG4 codec decoding
Max 320Mbps incoming bandwidth
Up to 12Mp resolution preview&playback
2HDMI/VGA simultaneous video output
1-8 PoE Ports Support 800m ePoE & EoC

System Compression	H.265/H.264/MJPEG/MPEG4
Main Processor	Quad-core embedded processor
Operating System	Embedded Linux
Video Output	HDMI1: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 VGA1: 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 HDMI2/VGA2: 1920 × 1080
Video Resolution	3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
IP Camera Input	16CH
Display Split	1/4/8/9/16
Recording Resolution	12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Recording Rate	320Mbps
Bit Rate	16kbps~20Mbps for per channel
Recording Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Audio In	1
Audio Out	2
2 Way Audio	1 Channel Input, 2 Channel Output, RCA
Alarm In	16 Channel
Alarm Out	6 Channel
Trigger Events	Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm Relay Output	6 Channel
Playback Channels	1/4/9/16
Playback Search	Time/Calendar Search, Event (motion)
Playback Function	Play, Pause, FF, FB; Digital zoom
Backup Mode	USB Device/Network/Internal SATA burner/eSATA Device
Performance	Max 12 face pictures /sec processing 2 channel video stream face recognition 8 channel picture stream face recognition ( with FD camera)
Stranger Mode	Detect strangers' faces(not in device's face database). Similarity threshold can be set manually.
AI Search	Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management	Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries&regions and state can be added to each face picture.
Database Application	Each database can be applied to video channels independently.
Network Interface	RJ-45 port (10/100/1000Mbps)
PoE Ports	16 ports (IEEE802.3af/at)
Network Function	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P
Network Max. Users	128 users
Mobile	iPhone, Android
USB	3 ports (2 Rear USB3.0,1 Front USB2.0)
RS485	1 port, for PTZ control
RS232	1 port, for communication with PC or keyboard
Internal HDD	4 SATA III Ports, up to 8TB capacity for each HDD
e-SATA	1 eSATA port
Power Supply	Single, AC 100~240V, 50/60 Hz
Power Consumption	<17.5W (without HDD)
Operating Conditions	-10 ~+55°C / 10~90%RH / 86~106kpa
Dimensions	1.5U, 440mm×411.1mm×76mm (17.3" x 16.2" x 3.0")
Weight	Net Weight 4.65kg (10.3 lb) (without HDD) Gross Weight 7kg(15.4 lb)(without HDD)
