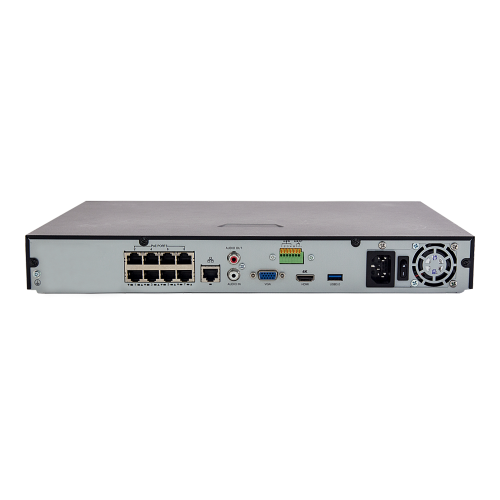

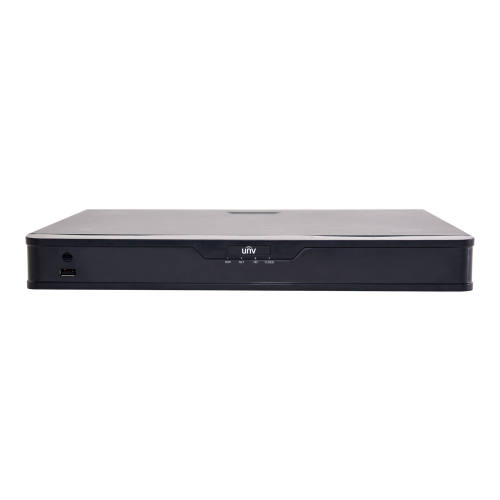

UN-NVR30216EP8B | Univew Ultra265 16CH NVR w/ 8 PoE | 2 SATA
SKU: UN-NVR30216EP8B
Stock: 20
Stock: 20
Price:
$540.00
$509.00
Features
- H.265 Compression + U-Code (Ultra 265)
- Support 16 CH 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF IPC input
- Adopt standard H.265 / H.264 high profile compression format to get high-quality video at much lower bit rate
- Plug & Play with 8 independent PoE network interfaces
- 3rd Party IP Camera Supported with ONVIF conformance
- Support 1CH HDMI, 1CH VGA, HDMI at up to 4K (3840 x 2160) resolution
- Up to 12MP resolution recording
- Accurate retrieval, instant playback
- 2 SATA HDD, Up to 8TB
- Support for P2P, UPnP, NTP, DHCP, PPPoE
- Support for mobile client access
| System Compression | Ultra 265, H.265, H.264 |
|---|---|
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux |
| IP Camera Input | 16CH |
| Video Output |
HDMI: 4K (3840 x 2160) / 60Hz, 4K (3840 x 2160) / 30Hz, 1920 x 1080p /60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024x768 / 60Hz |
| Corridor Mode Screen | 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 |
| Playback Channels | 16CH |
| Live View Resolution | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960p / 720P / D1 / 2CIF / CIF |
| Playback Resolution | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960p / 720P / D1 / 2CIF / CIF |
| Decoding Capability |
3 x 12MP@25fps, |
| Audio In | 1CH |
| Audio Out | 1CH, RCA |
| 2 Way Audio | 1CH, RCA |
| Alarm In | 4CH |
| Alarm Out | 1CH |
| Network Interface | RJ-45 10M/100M self-adaptive Ethernet Interface x 1 |
| Incoming Bandwidth | 160Mbps |
| Outgoing Bandwidth | 320Mbps |
| Network Max. Users | 128 Users |
| Network Function | P2P, UPnP, NTP, DHCP, PPPoE |
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
| VCA Search | Face search, Behavior search |
| Statistical Analysis | People counting |
| PoE Ports | 8CH 100 Mbps PoE network interfaces |
| PoE Power |
Max 30W for single port, |
| Supported Standard | IEEE 802.3af/at |
| Mobile | iPhone, Android |
| RS485 | N/A |
| USB | Front panel: USB2.0 x 1, Rear panel: USB3.0 x 1 |
| Power Supply | AC 100~240V |
| Power Consumption | ≤ 20 W( without HDD ) |
| Internal HDD | 2 x SATA interfaces (up to 8TB for each HDD) |
| e-SATA | N/A |
| Operating Conditions | 14°F ~ +131°F (-10°C ~ + 55°C), Humidity ≤ 90% RH(non-condensing) |
| Dimensions | 15" × 12.4"× 1.8" (380 × 315 × 46 mm) |
| Weight | 2.42 lb (≤ 5.34 Kg without HDD ) |
