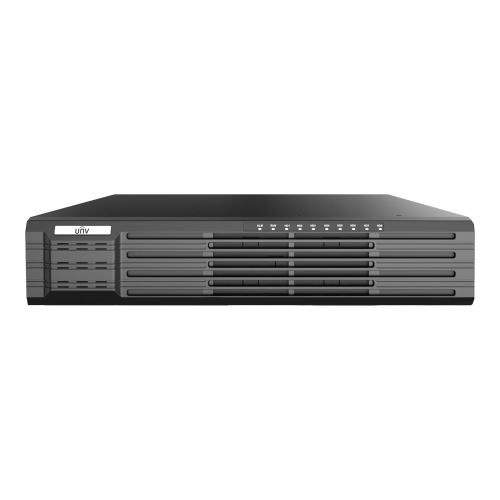

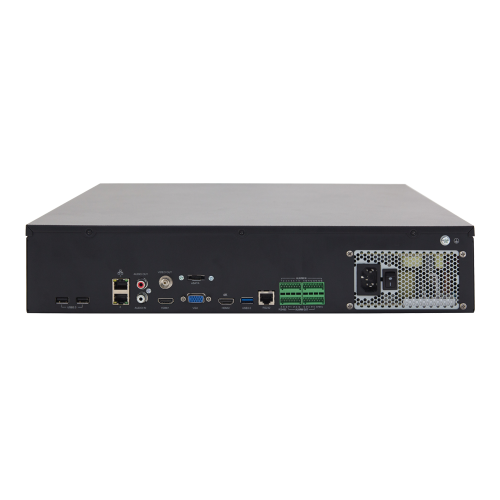

UNV UN-NVR30864R | Uniview Ultra265 64CH NVR | 8 SATA
SKU: UN-NVR30864R
Stock: 20
Stock: 20
Price:
$2,800.00
$2,725.00
Features
- H.265 Compression + U-Code (Ultra 265)
- 64 channel input
- Third-party IP cameras supported with ONVIF conformance
- Support 2-ch HDMI, 1-ch VGA, 1-ch CVBS, HDMI2 at up to 4K(3840x2160) resolution
- Up to 12 Megapixels resolution recording
- Support H.265/H.264 video formats
- Accurate retrieval, instant playback
- Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
- 8 SATA HDDs, Up to 8TB for each HDD
- Support various VCA detection alarm and VCA search
- Support N+1 Hot spare
- Support for 12V Power output
- Plug & Play with up to 16 independent PoE network interfaces
- Support for P2P, UPnP, NTP, DHCP, PPPoE
- Support for mobile client access
Download
| System Compression | Ultra 265, H.265, H.264 |
|---|---|
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux |
| IP Camera Input | 64CH |
| Video Output |
HDMI1/VGA: 1920x1080p / 60Hz, 1920x1080p / 50Hz, 1600x1200 / 60Hz, 1280x1024 / 60Hz, 1280x720 / 60Hz, 1024x768 / 60Hz |
| Audio In | 1CH |
| Audio Out | 1CH, RCA |
| 2 Way Audio | 1CH, RCA |
| Playback Channels | 16CH |
| Live View Resolution | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Playback Resolution | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Decoding Capability |
3 x 12MP@25fps, |
| Alarm In | 16CH |
| Alarm Out | 4CH |
| Network Interface | RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces x 2 |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 320Mbps |
| Network Max. Users | 128 |
| Network Function | P2P, UPnP, NTP, DHCP, PPPoE |
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
| VCA Search | Face search, Behavior search |
| Statistical Analysis | People counting |
| PoE Ports | N/A |
| PoE Power | N/A |
| Supported Standard | N/A |
| Mobile | iPhone, Android |
| RS485 | RS485 x 1 |
| RS232 | RS232 x 1 |
| RS422 | N/A |
| USB | Rear panel: USB3.0 x 1, USB2.0 x 2 |
| Power Supply | AC 100~240V |
| Power Consumption | ≤ 20 W( without HDD ) |
| RAID | RAID 0, 1, 5, 6, 10 |
| Internal HDD | 8 SATA interfaces (Up to 8TB for each HDDs) |
| e-SATA | 1 eSATA interface |
| Operating Conditions | 14°F ~ +131°F (-10°C ~ + 55°C), Humidity ≤ 90% RH(non-condensing) |
| Dimensions | 19.9" x 17.4" × 3.4" (531 x 442 × 86mm) |
| Weight | 11.31 Lbs (≤ 5.13 Kg) |
