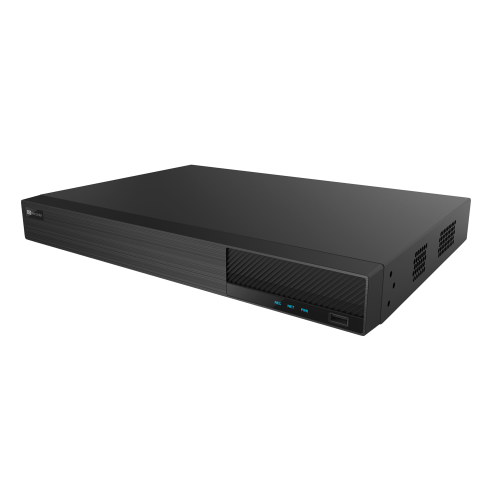

ED9308H5NV-8P-L | H.265 Titanium 8CH 5MP IPC HD NVR

SKU: ED9308H5NV-8P-L
Stock: 20

Price: $150.00

$135.00

Features

Support 8CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
Adopt standard H.265 and H.264 high profile compression format to
get high-quality video at much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style
operation by mouse
Multi-mode recording: manual / timer / motion / sensor
Playback : 8CH simultaneous playback
Search : time slice, time, event ( manual, sensor, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and
configuration
Dual stream technology for local storage with high definition, remote
network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log view and device status view
1080P HD output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smart phone & Pad surveillance with iOS and Andriod OS

System Compression	Standard H.265, H.264
Operating System	Embedded Linux
IP Camera Input	8CH
Video Output	HDMI × 1 : 1920×1080/1280×1024/1024×768 VGA × 1 : 1920×1080/1280×1024/1024×768
Audio In	8 CH IPC audio input
Audio Out	No ( HDMI supports the audio output )
2 Way Audio	N/A
Recording Resolution	5MP / 4MP / 3MP / 2MP / 1MP / D1 / CIF
Recording Mode	5MP / 4MP / 3MP / 2MP / 1MP / D1 / CIF
Record Stream	Dual stream recording
Playback Channels	8CH
Playback Search	Time slice / time / event / tag search
Playback Smart Search	Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Playback Function	Record, snap, preset, e-mail, etc.
Alarm Mode	Sensor, motion, video loss
Alarm In	N/A
Alarm Out	N/A
Trigger Events	Record, snap, preset, e-mail, etc.
Network Interface	RJ45 10 / 100 Mbps × 1
Incoming Bandwidth	40Mbps
Outgoing Bandwidth	40Mbps
Network Protocol	TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Network Max. Users	N/A
PoE Ports	N/A
Mobile	iPhone, Android
RS485	N/A
USB	USB 2.0 × 2
Remote Connections	Optional
Power Supply	48V DC
Power Consumption	≤ 6W ( without HDD )
Internal HDD	1 x SATA, max 10T per HDD
e-SATA	N/A
Operating Conditions	-10 ? 50 ??10% ? 90% humidity
Dimensions	255mm x 233mm x 42 mm
