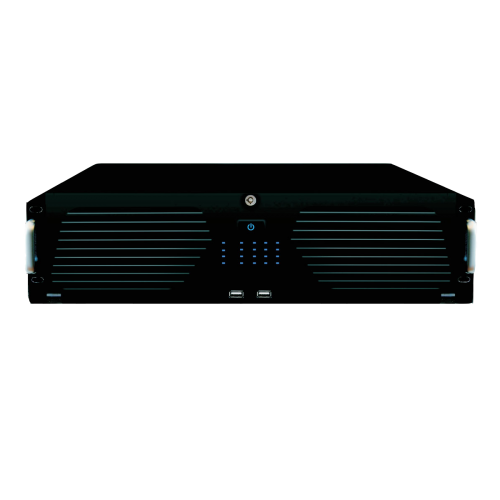

128CH 8MP Titanium GUI NVR Server | ED98128H5NV

SKU: ED98128H5NV
Stock: 20

Price: $2,200.00

$2,050.00

Features

H.265 Compression
Titanium Interface
Support 128 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IPC input
Adopt standard H.265 / H.264 high profile compression format to get high-quality video at a much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timer / motion / sensor
Playback: 16 CH simultaneous playback
Search: time slice, time, event ( manual, sensor, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup, and remote access
DHCP, DDNS, PPPoE network protocol and CMS supported
Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with the mobile device
Multi-user online simultaneously
Authorization management, log view and device status view
4K output, true high-resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smartphone & Pad surveillance with iOS and Android OS

System Compression	Standard H.265 / H.264
Operating System	Embedded Linux
IP Camera Input	128CH
Video Output	HDMI × 2 : 4K × 2K / 1920 × 1080 / 1280 × 1024, 1920 × 1080 / 1280 × 1024 VGA × 1 : 1920 × 1080 / 1280 × 1024
Audio In	1CH
Audio Out	1CH
2 Way Audio	Support
Decoding Capability	2CH@8MP, 8CH@4MP, 32CH@1MP, 64@D1
Recording Resolution	4K / 5MP / 4MP / 3MP / 1080P / 960P / 720P
Recording Mode	Manual, timer, motion, sensor
Record Stream	Dual stream recording
Playback Channels	16CH
Playback Search	Time/Calendar Search, Event (motion)
Playback Smart Search	Highlighted date and time to display the channel record
Playback Function	Play, Pause, FF, FB; Digital zoom
Alarm Mode	Manual, sensor, motion, exception
Alarm In	8CH
Alarm Out	4CH
Trigger Events	Record, snap, preset, e-mail, etc.
Network Interface	RJ45 10 / 100 / 1000 Mbps × 2
Incoming Bandwidth	384Mbps
Outgoing Bandwidth	384Mbps
Network Protocol	TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Network Max. Users	Max 20 users online
PoE Ports	N/A
Mobile	iPhone, Android
RS485	N/A
USB	Rear: 1 x USB 3.0, Front: 2 x USB 2.0
Remote Connections	Optional
Power Supply	AC 110 ~ 240V
Power Consumption	≤ 30W ( without HDD )
Internal HDD	16 x SATA ( Up to 10TB per HDD, supports HDD hot swapping ),
e-SATA	1 x e-SATA ( support external storage )
RAID	RAID 0, 1, 10, 5
Operating Conditions	14? ~ 122? (-10 ? ? 50 ?), 10% ? 90% humidity
Dimensions	17.2" x 19" x 5.6" (437 × 483 × 143mm)
