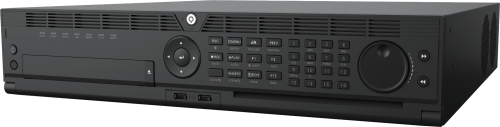

64Channel H.265+ 4K Network Video Recorder | ESNRA10-64

SKU: ESNRA10-64
Stock: 20

Price: $1,650.00

$1,599.00

(0.0 on 0) | Write a review

Overview Reviews Tell a Friend

Features and Functions

Dual-OS design to ensure high reliability of system running
ANR technology to enhance the storage reliability when the network is disconnected
HDD hot swap with RAID0, RAID1, RAID5, RAID6 and RAID10 storage scheme configurable
Configurable normal or hot spare working mode to constitute an N+1 hot spare system
Up to 64-ch 12 MP IP cameras can be connected
Connectable to the third-party network cameras
H.265+ compression effectively reduces the storage space by up to 75%
Full channel recording at up to 12MP resolution
HDMI1/VGA1 and HDMI2/VGA2 outputs provided
HDMI1 Video output at up to 4K (3840 × 2160) resolution
Up to 8 SATA interfaces and 1 eSATA interface for HDD connection
10TB capacity for each HDD
Smart search for efficient playback
16-ch synchronous playback at up to 1080p resolution
Normal/Important/Custom video playback
Important files management
HDD health monitoring
Supports multiple VCA (Video Content Analytics) events
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
POS information overlay on live view and playback
POS triggered recording and alarm
Hik-Connect for easy network management
2Gigabit Ethernet network interface

System Compression	H.265/H.265+/H.264/H.264+/MPEG4
Video Output	HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA2/HDMI2: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Resolution	4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;
IP Camera Input	64 Ch
Audio In	1-ch, RCA
Audio Out	2-ch, RCA (2.0Vp-p, 1 KΩ)
2 Way Audio	1-ch, RCA (2.0 Vp-p, 1 kΩ)
Recording Resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF /DCIF/ 2CIF/CIF/QCIF
Recording Rate	N/A
Alarm In	16 Ch
Alarm Out	4 Ch
Playback Channels	16CH
Playback Search	Time/Calendar Search, Event (motion)
Playback Function	Play, Pause, FF, FB; Digital zoom
Backup Mode	N/A
Network Interface	2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE Ports	N/A
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	256 Mbps
Network Protocol	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
USB	Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
RS485	1 RS-485
RS232	1 RS-232
Internal HDD	8 SATA interface, Up to 10TB capacity for each disk
e-SATA	1 eSATA interface
Power Supply	100 to 240 VAC
Power Consumption	≤ 200 W
Operating Conditions	-10 to +55º C (+14 to +131º F)
Dimensions	445 × 470 ×90 mm (17.5"× 18.5" × 3.5")
Weight	Weight(without hard disk) ≤ 10 kg (22 lb)
