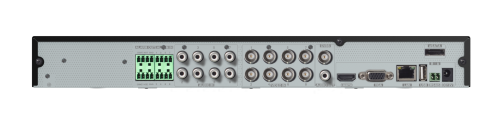

ED8208H5-F | 4K H.265 Titanium 8CH 5-IN-1 Hybrid DVR

SKU: ED8208H5-F
Stock: 20

Price: $200.00

$179.00

(0.0 on 0) | Write a review

Overview Reviews Tell a Friend

Features

8CH TVI / CVI / AHD video input, support 5MP / 4MP / 3MP / 1080P / 720P / WD1 recording
8CH CVI video input, support 4MP / 3MP / 1080P / 720P / WD1 recording.
8CH DVRs supports 8CH IPC 8MP / 5MP / 4MP / 3MP / 1080P / 960P/ 720P recording
Playback: 8CH simultaneously playback; HDMI 1080P output
Titanium OS
Backup: USB, IE, CMS; support multi-file, file cutting when backup
Pentaplex: live, record, playback, backup and remote operation
DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
Dual stream technology; Multi-user online simultaneously
Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
Cell phone: iPhone, Android
Complete SDK function, easy to integrate with other applications
Max HDD: 2 x HDD, E-SATA x 1

System Compression	H.265 High profile
Main Processor	Embedded Processor
Operating System	Embedded Linux
Video Compatibility	HD-TVI / AHD / HD-CVI / 960H / IP
Max. Video Channels	12CH
Video Input	BNC x 8 (TVI/AHD/CVI/960H)
IP Camera Input	IPC x 4 (Max.12 IPC In)
IPC Resolution	8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P
IPC Frame Rate	8MP@30fps
Video Interface	HDMI/VGA/CVBS(SPOT)
Video Resolution	4K / 5MP / 5MP Lite / 4MP / 4MP Lite / 3MP / 1080P / 720P / WD1
Multi-Screen Display	N/A
OSD	Yes
Audio In	8CH, RCA
Audio Out	1CH, RCA
2 Way Audio	Take up channel one as an audio input
Recording Resolution	4K / 5MP / 5MP Lite / 4MP / 4MP Lite / 3MP / 1080P / 720P / WD1
Recording Frame Rate	4K@6fps/7fps (PAL / NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL / NTSC) 4MP / 3MP@12fps(PAL) / 15fps (NTSC) 4MP Lite / 1080P / 720P / WD1@25fps (PAL) / 30fps (NTSC)
Recording Encode	N/A
Recording Quality	N/A
Recording Mode	Manual, timer, motion
Recording File Management	N/A
Playback Channels	8CH
Playback Search	Time slice / time / event / tag search
Playback Smart Search	Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Playback Function	Play, pause, FF, FB, digital zoom, etc
Alarm In	8CH
Alarm Out	2CH
Alarm Mode	Manual, motion, exception
Trigger Events	Record, snap, preset, e-mail, etc.
Network Bandwidth	IPC × 8 / 64Mbps
Network Function	TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Network Max. Users	Multiple users online
Mobile	iPhone, Android
Cellphone Function	Multi-screen surveillance (for certain model), record, snapshot, PTZ control, save the device list
RS485	RS485 x 1, connect to PTZ or keyboard
USB	USB 2.0 × 2
Remote Connections	Optional
Power Supply	DC12V / 4A
Power Consumption	≤ 15W ( without HDD )
Internal HDD	2 x SATA (up to 8TB capacity for each disk),
e-SATA	1 x e-SATA
Operating Conditions	14? ~ 122? (-10~50°C), 10%~90% (Humidity)
Dimensions	15" x 10.6" x 2.0" (380 x 268 x 52mm)
