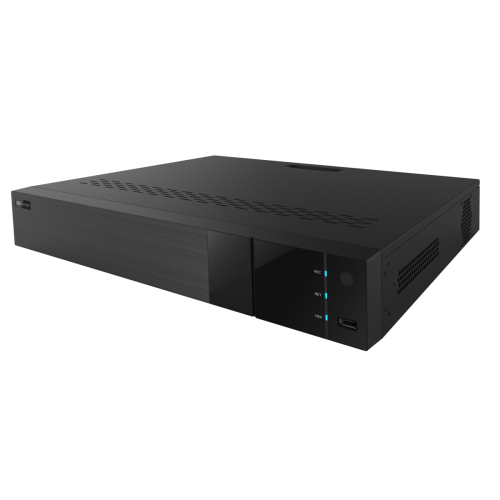

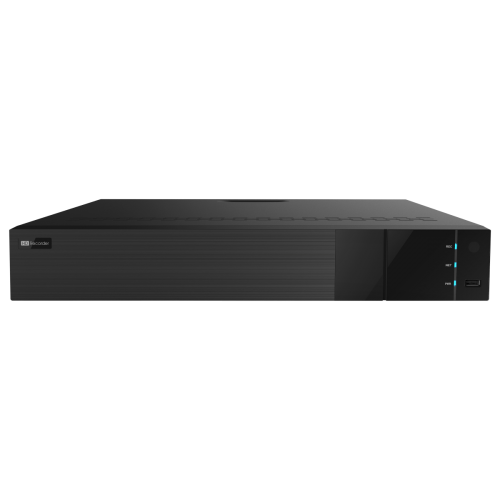

ED8416TCPR | 5MP 16CH 5-IN1 Hybrid DVR | Up To 20 IPC

SKU: ED8416TCPR
Stock: 19

Price: $300.00

$279.00

(0.0 on 0) | Write a review

Overview Reviews Tell a Friend

Features

16 CH TVI / AHD 2.0 video input, 16 CH 1080P / 1080P lite / 720P 16 CH TVI / CVI / AHD video input
16 CH 5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1 recording
4 CH IPC 4MP / 3MP / 1080P / 960P / 720P recording (Up To 20 IPC)
Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-mode recording: manual / timer / motion / sensor
Playback : 16 CH simultaneously playback
Search: time slice, time, event ( manual, sensor, motion ), tag search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log review and device status review
HDMI 1080P output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phone and PAD
Powerful smart phone & Pad surveillance with iOS and Andriod OS

Download

System Compression	H.264 High profile
Main Processor	Embedded Processor
Operating System	Embedded Linux
Video Compatibility	HD-TVI / AHD / HD-CVI / 960H / IP
Max. Video Channels	20CH
Video Input	BNC x 16 (TVI/AHD/CVI/960H)
IP Camera Input	IPC x 4 (Max.12 IPC In)
IPC Resolution	4MP / 3MP / 1080P / 960P / 720P
IPC Frame Rate	4MP@30fps

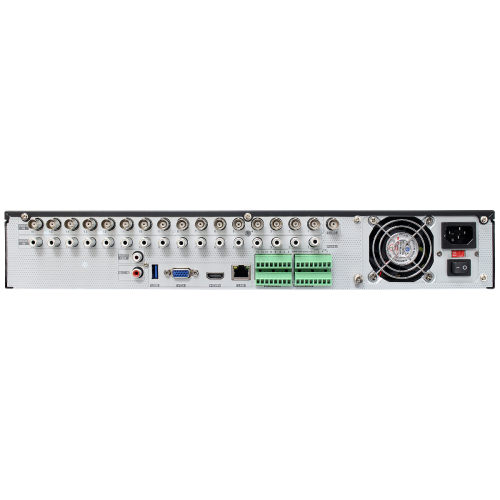

Video Interface	HDMI/VGA/CVBS(SPOT)
Video Resolution	5MP / 4MP / 4MP lite / 3MP / 1080P / 720P / WD1
Multi-Screen Display	N/A
OSD	Yes
Audio In	16CH, RCA
Audio Out	1CH, RCA
2 Way Audio	Take up channel one as an audio input
Recording Resolution	5MP, 4MP, 4MP lite, 3MP,1080P, 720P, WD1
Recording Frame Rate	5MP@10fps, 4MP@15fps, 2MP@30fps
Recording Encode	N/A
Recording Quality	5 Level
Recording Mode	Manual,sensor, motion, exception
Recording File Management	Lock, Unlock
Playback Channels	16CH
Playback Search	Time/Calendar Search, Event (motion)
Playback Smart Search	Highlighted date and time to display the channel record
Playback Function	Play, Pause, FF, FB; Digital zoom
Alarm In	16CH
Alarm Out	4CH
Alarm Mode	Manual, sensor, motion, exception
Trigger Events	Record, PTZ move,alarm out,e-mail, etc
Network Bandwidth	IPC × 4 / 24Mbps
Network Function	TCP/IP?PPPoE?DHCP?DNS?DDNS?UPnP?NTP?SMTP?ONVIF?GB28181
Network Max. Users	N/A
Mobile	iPhone, Android
Cellphone Function	Multi-screen surveillance (for certain model), record, snapshot, PTZ control, save the device list
RS485	RS485 x 2, connect to PTZ or keyboard
USB	Rear: 1 x USB3.0, Front: 1 x USB2.0
Remote Connections	Optional
Power Supply	AC 110 ~ 240V
Power Consumption	?40W (without HDD)
Internal HDD	4 x SATA (up to 8TB capacity for each disk)
e-SATA	N/A
Operating Conditions	-10~50°C, 10%~90% (Humidity)
Dimensions	17.3" x 15.4" x 2.8" (440 x 390 x 70mm)
