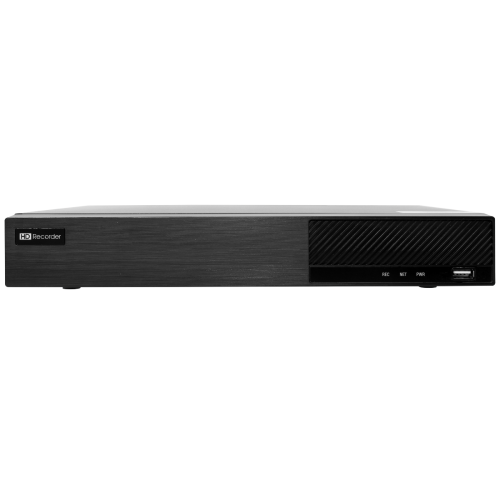

ED8216H5-FN | 16CH 4K Titanium TVI/AHD/CVI Hybird DVR
SKU: ED8216H5-FN
Stock: 17
Stock: 17
Price:
$375.00
$349.00
Features
- 16 CH TVI / AHD video input, support 8MP / 5MP/ 4MP / 3MP / 1080P / 720P / WD1
- 16 CH CVI video input, support 4MP / 3MP / 1080P / 720P / WD1
- 16 CH DVRs support 8 CH IPC 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P
- Adopt standard H.265 high profile compression format to get high-quality video at a much lower bit rate
- Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
- Multi-mode recording: manual / timer / motion
- Playback: 16CH simultaneous playback
- Search: time slice, time, event ( manual, motion ), tag search
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup, and remote access
- DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
- Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with the mobile device
- Multi-user online simultaneously
- Authorization management, log review and device status review
- HDMI 4K output, true high-resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phone and PAD
- Powerful smartphone & Pad surveillance with iOS and Andriod OS
| System Compression | H.265 High profile |
|---|---|
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Video Compatibility | HD-TVI / AHD / CVI |
| Max. Video Channels | 16CH |
| Video Input | BNC x 16 |
| IP Camera Input | 8 (UP TO 16CH) |
| IPC Resolution | 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P |
| IPC Frame Rate | 25fps ( PAL ) / 30fps ( NTSC ) |
| Video Interface | HDMI/VGA/CVBS |
| Video Resolution | HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| Multi-Screen Display | N/A |
| OSD | No |
| Audio In | 8CH, RCA |
| Audio Out | 1CH, RCA |
| 2 Way Audio | Take up channel one as an audio input |
| Recording Resolution | 4K/4Klite/5MP/5MP Lite/4MP/4MP Lite/1080P/720P/WD1 |
| Recording Frame Rate |
4K@6/7fps(PAL/NTSC) |
| Recording Encode | N/A |
| Recording Quality | N/A |
| Recording Mode | Manual, Timer, Motion |
| Recording File Management | N/A |
| Playback Channels | 16CH |
| Playback Search | Time slice / time / event / tag search |
| Playback Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
| Playback Function | Play, pause, FF, FB, digital zoom, etc. |
| Alarm In | 16 CH |
| Alarm Out | 4 CH |
| Alarm Mode | Manual, motion, exception |
| Trigger Events | Record,snap,alarm out,e-mail, etc |
| Network Bandwidth | 80/96Mbps |
| Network Function | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
| Network Max. Users | N/A |
| Mobile | iPhone, Android |
| Cellphone Function | N/A |
| RS485 | RS485 x 1, connect to PTZ or keyboard |
| USB | 2 x USB 2.0 |
| Remote Connections | Optional |
| Power Supply | DC12V / 4A |
| Power Consumption | ?30W (without HDD) |
| Internal HDD | 2 x SATA (up to 8TB capacity for each disk) |
| e-SATA | e-SATA x 1 |
| Operating Conditions | -10~50°C, 10%~90% (Humidity) |
| Dimensions | 380mm x 268mm x 52mm (W x D x H) |
