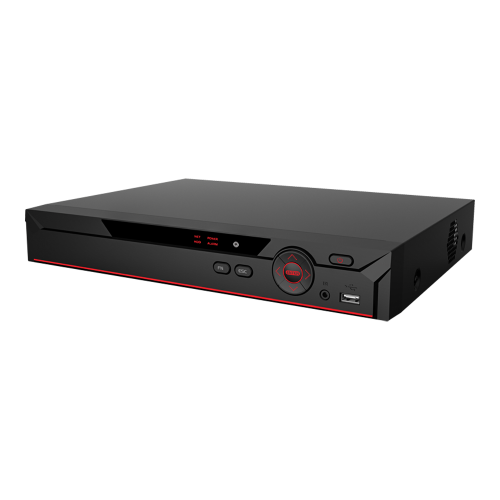

XVR501H-04-X | 4 Channel Penta-brid 1080P Mini 1U Digital Video Recorder

SKU: XVR501H-04-X
Stock: 20

Price: $100.00

$85.00

(0.0 on 0) | Write a review

Overview Reviews Tell a Friend

Features

Embedded processor
H.265+/H.265 dual-stream video compression
Support HDCVI/AHD/TVI/CVBS/IP video inputs
Max. 6 channels IP camera inputs, each channel up to 6MP
Max. 24Mbps incoming bandwidth
Smart Search and Intelligent Video System

System Compression	H.265+/H.265/H.264+/H.264
Main Processor	Embedded Processor
Operating System	Embedded Linux
Video Interface	1 HDMI, 1 VGA
Video Resolution	1920x1080, 1280x1024, 1280x720
Multi-Screen Display	When IP extension mode not enabled: 1/4; When IP extension mode enabled: 1/4/6
HDCVI Camera Input	5MP, 4MP/1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
IP Camera Input	4+2 Channel, each channel up to 6MP
OSD	Yes
Recording Resolution	5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Recording Frame Rate	Mainstream: 5M-N1~10fps), 4M-N/1080P(1~15fps); 1080P/720P/960H/D1/CIF(1~25/30fps) Substream: D1/CIF (1~15fps)
Bit Rate	32Kbps ~ 6144Kbps Per Channel
Recording Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop
Record Interval	1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Playback Channels	1/4
Playback Search	Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device/Network
Audio In	1
Audio Out	1
2 Way Audio	Reuse audio in/out, RCA
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Alarm In	N/A
Alarm Relay Output	N/A
Network Interface	1 RJ-45 Port (100M)
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Network Max. Users	128
Interoperability	ONVIF 16.12, CGI Conformant
Mobile	iPhone, Android
RS485	1 Port, for PTZ Control
USB	2 USB Ports (1 USB 2.0, 1 USB 3.0)
RS232	N/A
RS422	N/A
Power Supply	DC12V/4A
Power Consumption	<10W (Without HDD)
Internal HDD	1 SATA Port, up to 10TB capacity
e-SATA	N/A
Operating Conditions	-10°C ~ +55°C (+14°F ~ 131°F), 10%~90% RH
Storage Conditions	-20°C ~ +70°C (-4°F ~ 158°F), 0~90% RH
Dimensions	Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")
Weight	Net weight 1.0kg (2.2lb) (without HDD); Gross weight 1.9kg (4.2lb)
